Aufspannwinkel
Abbildung ähnlich
Produktinformationen "Aufspannwinkel"

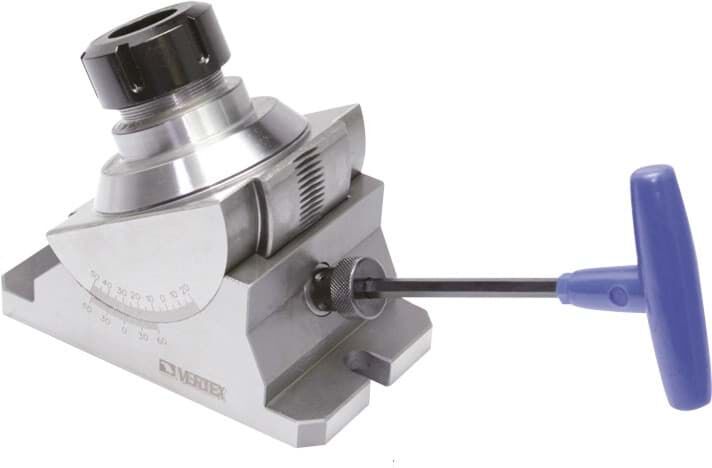

Vertex VUA-ER40 Precision Universal Angle Collet Chuck Tolerance ±0.01mm/100mm.
360° horizontal swivel, 45° vertical tilting.
Suit for multi - angle cutting.
Simple way for mass production.
Hardness : HRC52°±2°
Load Capacity :15Kgs

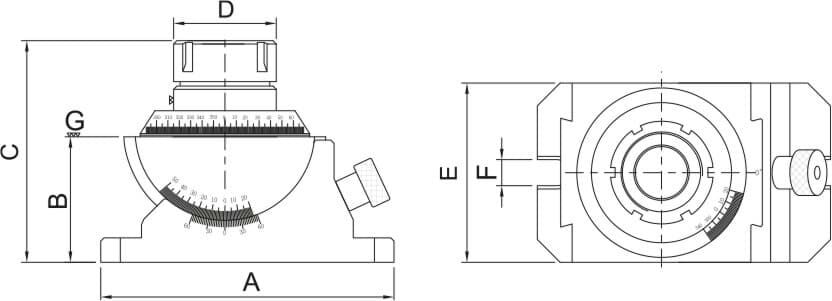

Technical Data
- A: 180mm
- B: 77mm
- C: 136mm
- D: 63mm
- E: 110mm
- F: 16mm
- Weight: 12kg
