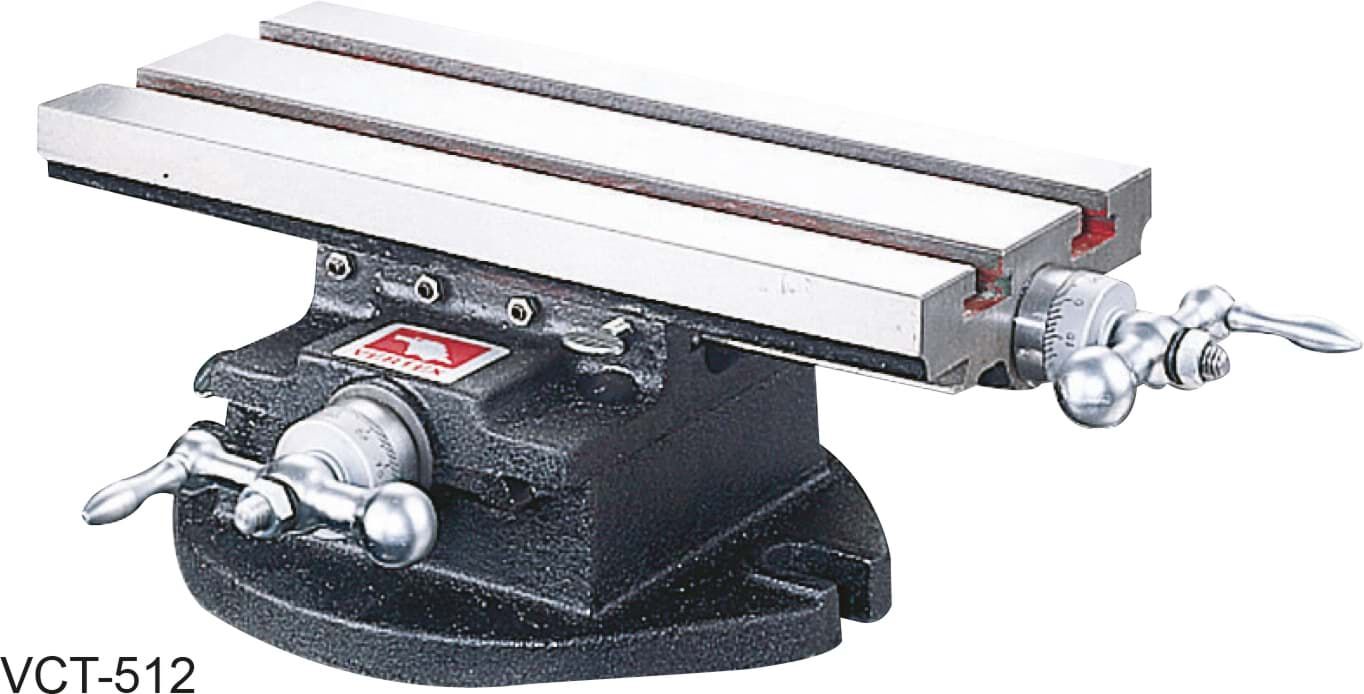

Vertex VCT-512 Cross Table Table: 310x141mm
Height: 115mm
Travel: 200mm longitudinal.
125mm transverse.
Base: 225mm x 200mm oval with U slots for up to 16 bolts on 190 to 210 bolts circle.
Dial Graduated: 0.03mm
Net weight: 16.5kgs
Max.Load:20kgs
Packing Volume of each unit: 430x265x155mm
LIGHT DUTY ONLY

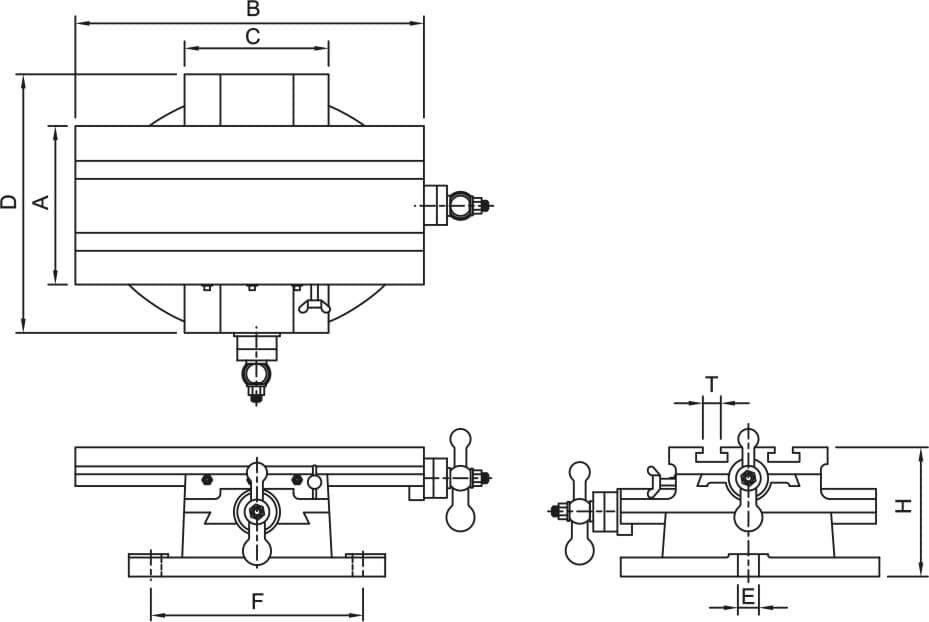

Technical Data
- A: 141mm
- B: 310mm
- C: 128mm
- D: 230mm
- E: 19mm
- F: 185mm
- Stroke: 200×125mm
- T slot: 16mm
- Total height: 115mm
- Packing L×W×H: 430×265×155mm
- Weight: 16,5kg
